TAKUMI UVC 600 – Ultimate Precision for Simultaneous 5-Axis Machining

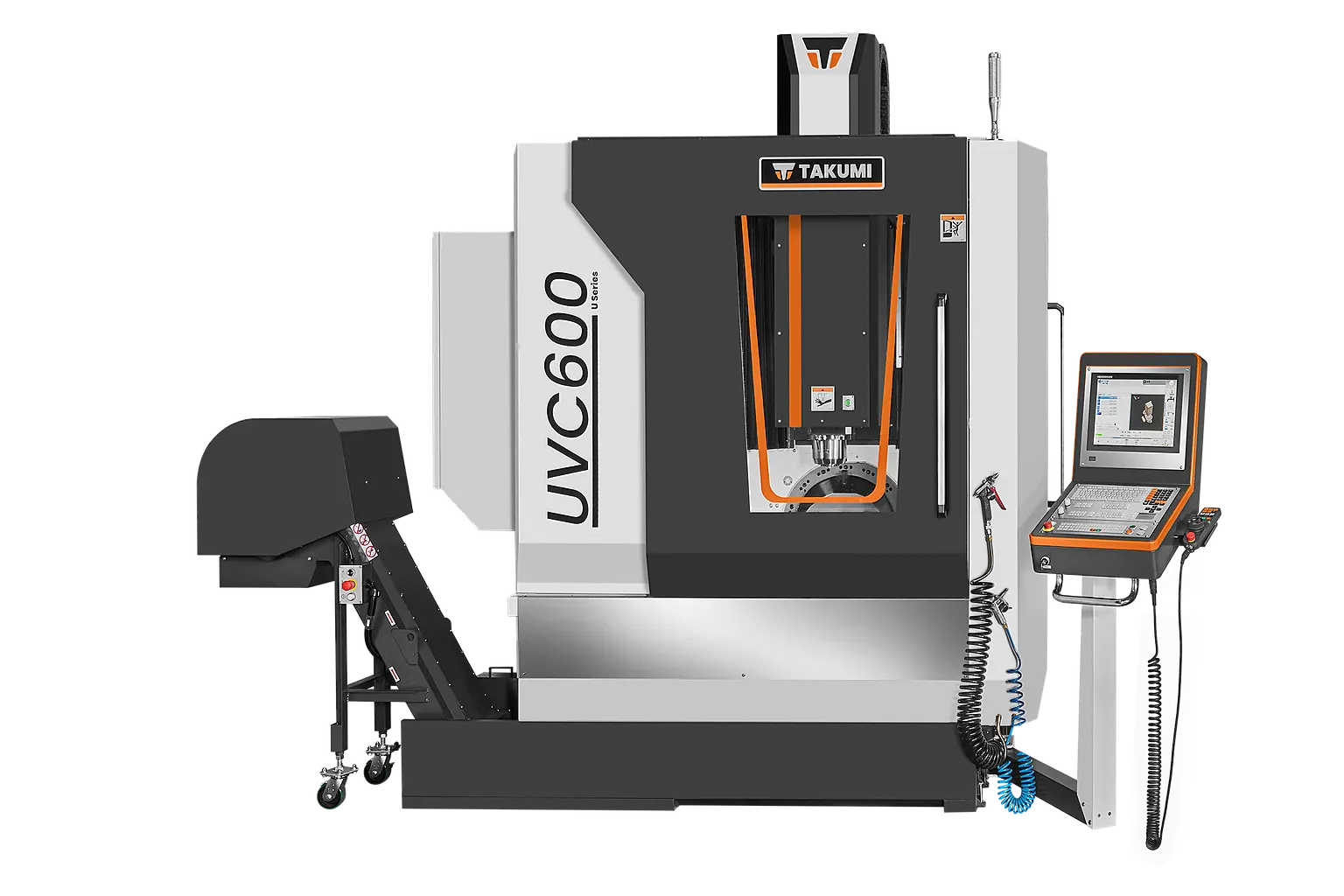

TAKUMI UVC 600

The TAKUMI UVC 600 was developed for companies that demand the highest standards of precision, surface finish, and process reliability. Thanks to its robust machine design, powerful direct-drive spindle, and backlash-free DDM swivel rotary table, it is ideally suited for tool and mold making, the aerospace industry, and the high-precision machining of complex workpieces. Simultaneous 5-axis machining reduces setup changes, shortens machining times, and ensures maximum manufacturing quality.

Travels and Table

X-Axis (mm): 820
Y-Axis (mm): 550
Z-Axis (mm): 500
Table working surface W x D (mm): Ø 600
Spindle Speed (rpm): 15.000

High-precision 5-axis machining center for complex workpieces
Direct-drive spindle with 15,000 min⁻¹ and SK40 chuck
Backlash-free DDM swivel rotary table for maximum dynamics and positioning accuracy
HEIDENHAIN TNC7 control for maximum process reliability
Robust machine design for outstanding surface quality
Ideal for toolmaking, mold making, aerospace, and precision manufacturing

Request product

Ultimate Precision for Demanding 5-Axis Machining

The TAKUMI UVC 600 combines ultimate precision with powerful 5-axis technology and was developed specifically for companies where quality and process reliability are top priorities. Whether in tool and mold making, aerospace, or high-precision mechanical engineering—anywhere complex workpieces must be manufactured cost-effectively and with the highest accuracy—the UVC 600 demonstrates its strengths.

Simultaneous 5-axis machining reduces setup changes, shortens machining times, and enables excellent surface quality even on complex free-form surfaces. Thanks to its rigid machine structure, modern drive technology, and design consistently optimized for precision, the UVC 600 delivers consistently reproducible results and lays the foundation for cost-effective manufacturing at the highest level.

Perfectly Tailored to Your Manufacturing Needs

Every manufacturing operation has different requirements. That’s why the TAKUMI UVC 600 can be customized to fit your processes. From a variety of tool magazines to tool and workpiece measurement, and various coolant and equipment options, the result is a machine that is optimally tailored to your applications.

You’ll benefit not only from high-quality machine equipment but also from our many years of experience in machining. Together with you, we’ll configure the UVC 600 so that it perfectly suits your workpieces, manufacturing processes, and quality requirements.

Together, we’ll find the right solution

A machine tool is an investment that will last for many years. That’s why we support you every step of the way—from the initial consultation and machine selection to commissioning and beyond. Together, we’ll analyze your requirements and develop a solution that’s perfectly tailored to your manufacturing needs.

Below, you’ll find more information on spindle technology, the machine’s features, and the technical highlights of the TAKUMI UVC 600. We’d also be happy to advise you in person or demonstrate the machine live at our demonstration center.

Details

Specifications - UVC 600

Travels
X-Axis (mm)	820
Y-Axis (mm)	550
Z-Axis (mm)	500
B-Axis (°)	-40 / +110
C-Axis (°)	360

Table
Table working surface W x D (mm)	Ø 600
Load max. (uniform distribution) (kg)	350
Distance from spindle nose to table (mm)	150 - 650
T-Slots (DIN 650)	5 x 14mm x 100mm

Spindle
Spindle Taper	SK40 - BigPlus / BBT40
Type	In-Line
Power S1/S6 (kW)	10 / 14
Torque S1/S6 (Nm)	63,7 / 89,4
Spindle Speed (rpm)	15.000

Feed Rate
Rapid Traverse X/Y/Z-Axis (m/min)	36
Cutting Feed Rate X/Y/Z-Axis (mm/min)	20
Rapid Traverse A/B/C-Axis (1/min)	- / 50 / 100
Cutting Feed Rate A/B/C-Axis (1/min)	- / 50 / 100

ATC & Magazine
ATC Type	Doppelgreifer
Magazine Capacity	40
Maximum Tool Diameter (mm) full / next pocket empty	75
With Empty Pockets (mm)	150
Maximum Tool Length (mm)	300
Maximum Tool Weight (kg)	7

Space & System Requirements
Maximum Floor Space (mm) W x L x H	3.899 x 4.323 x 3.330
Machine Net Weight (kg)	10.000
Electrical Power Consumption (kVA / A)	60
Air Requirements (bar)	6

Spindle

Choose the spindle that suits you

Spindle options	UVC 600
Drehzahl max. (1/min)	15.000	15.000
Leistung S1/S6 (kW)	10 / 14	20 / 34
Drehmoment S1/S6 (Nm)	63,7 / 89,4	82 / 139,6
Schnittstelle	SK40^BigPlus	SK40^BigPlus
Standard / Optional	Standard	Optional

Features

Always perfectly equipped

Great features of our standard equipment

Heidenhain-Control TNC7 24"
15,000 rpm in-line spindle
Coolant system via coolant ring
Absolute position measuring systems in all axes
Internal coolant supply through the spindle (IKZ 30 bar)
Chip flushing
Spindle cooler
Complete enclosure of the workspace
Oil skimmer
Rinsing and compressed air gun
Scraper conveyor and chip trolley
Ethernet interface
Manual pluse generator (MPG)

With further optional equipment you can adapt the TAKUMI UVC 600 to your needs

Probe system for workpiece measurement
Touch probe system for tool measurement
Programmable external cooling air
Programmable cooling air through the spindle
Programmable cutting oil mist device
Oil mist separator
Internal coolant supply through the spindle (IKZ 70 bar)
Production package Knoll
Bypass filter system
Rotoclear
Steel belt type chip conveyor instead of scraper type

Highlights

Extremely stiff and high-presision mechanical structure

The load-bearing mechanical structures such as bed, pillar, bed sledge are made of heat-treated and stress-released Meehanite cast iron. The thereby gained absorption capacity enables low-vibration machining processes. This ensures high surface quality on the workpiece and increases the tool life.
Portal construction and stepped column for maximum rigidity, optimized force flow, minimization of the spindle overhang and increased dynamics
Three-plybed

Mechanical Accuracy

To increase the durability of wear parts, TAKUMI follows the philosophy of generating geometric accuracy directly from the mechanics. During machine assembly, the highest level of effort is applied — for example, mounting surfaces are hand-scraped.
Components are aligned with maximum precision and assembled with the utmost care. This reduces the need for subsequent compensation via the machine control system to an absolute minimum.

Thermal Stability

The enemy of accuracy is thermal expansion. To eliminate this and provide you with highly precise machining, TAKUMI equips its machines with the following features:

Preloaded ball screws with optional internal cooling
Thermal compensation of spindle expansion including sensors
Liquid-cooled milling spindle
Glass scales

Reliable Results

To provide you with the ideal tool for high-precision machining, the following measures have been consistently implemented in the U Series:

Oversized, high-precision roller linear guides in the three main axes
Preloaded ball screws to absorb thermal deformation and maintain highest accuracy
Up to six guide blocks for a balanced combination of dynamics and precision

Dynamics

All moving mechanical elements are designed to be inherently rigid and weight-optimized.

The high-precision roller linear guides ensure fast response during acceleration and deceleration, enabling high dynamics. Their large contact surfaces also provide optimal load distribution across the guideways. The load capacity and torsional rigidity of each axis are maximized, reducing guideway wear and compensating for vibrations even under high cutting forces.
The optimal number and positioning of guide blocks enhance stiffness and ensure consistent accuracy during long-term operation.

The loading access points of the TAKUMI U Series are extremely spacious. Whether loading large components via crane or performing quick changeovers for smaller parts, all workflows run smoothly and without restriction.

Accessibility

Centralized maintenance units as well as easily accessible working and operator interfaces ensure smooth setup processes and efficient production workflows.

Integrated Oil Skimmer

The oil skimmer prevents the coolant emulsion from deteriorating, even under significantly fluctuating or high temperatures. This effectively increases the service life of the coolant.

Chip Management

Measures such as:

Strategically positioned coolant flushing systems
Steeply inclined interior walls
Hinge-type or optional scraper conveyors
Wide-open chip drop openings
Hardened screw conveyors (not applicable to the U 400)

ensure that chip volume and heat are removed effectively and reliably.

Reasons for choosing TAKUMI 5-Axis Machining Centers

TAKUMI has been a successful partner for industry and research for over 30 years
Product development closely aligned with customer and market requirements
U Series designed for both mold & die applications and parts production
Service support through the established HURCO service network
Longevity ensured by oversized structural elements and high-quality components
Accuracy through robust and torsion-resistant gantry construction and targeted measures for increased thermal stability, reducing thermal expansion
Process reliability for long machining cycles with surface finishes that require no reworking
Highest form and contour accuracy in 5-axis simultaneous machining and maximum efficiency in 5-sided machining
