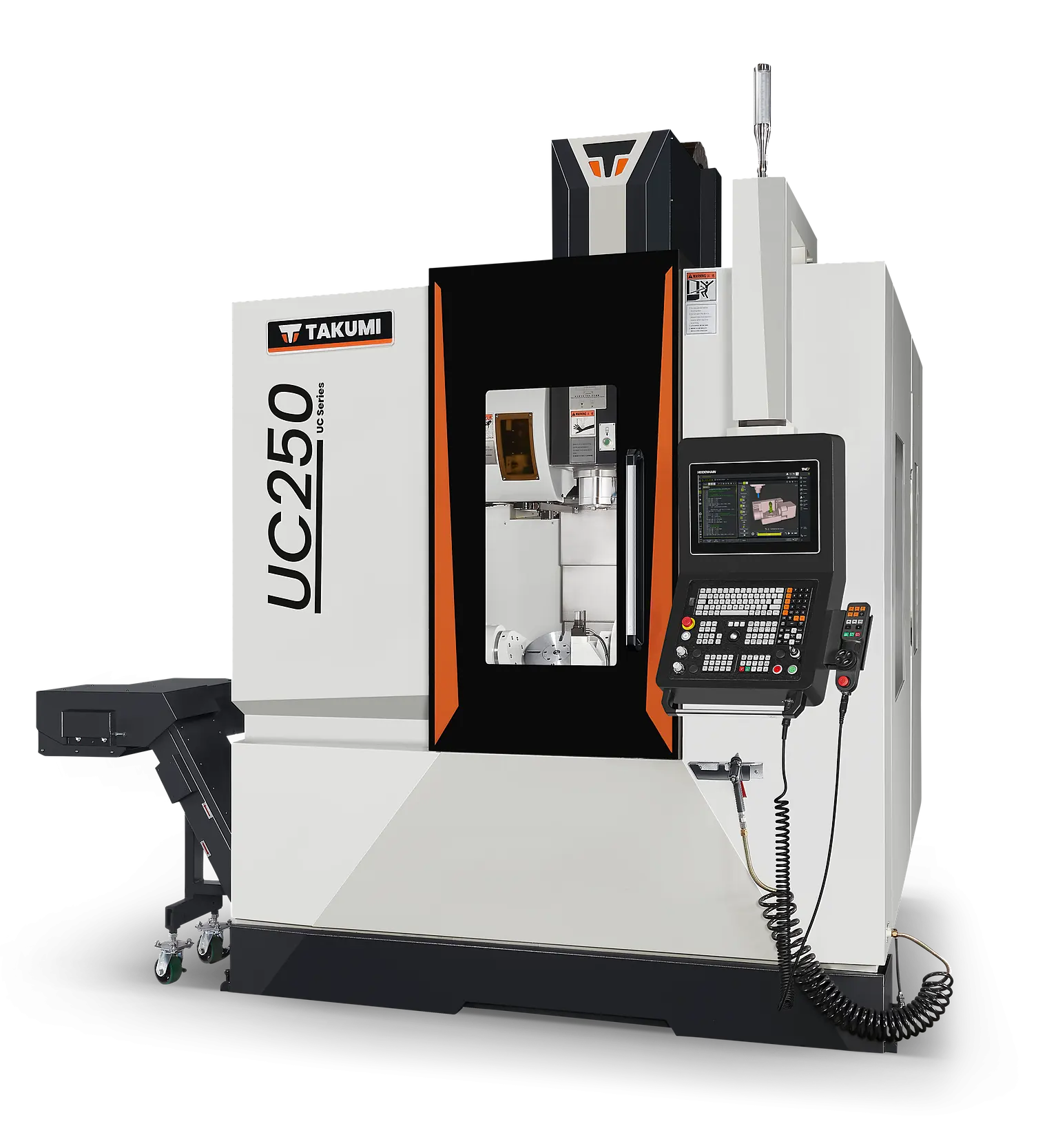

TAKUMI UC 250
The UC 250 is the perfect machining center for your cost-saving CNC entry into the machining of small components. With its minimal footprint and large work envelope, the machine opens up a wide range of possibilities for 5-axis machining in small spaces. The compact design houses a powerful BigPlus spindle with SK 40 tool holder, which has speeds of 15,000 rpm and offers 14 kW of power. The machine's wide-opening doors provide the best accessibility and enable user-friendly loading and unloading.
Travels and Table
X-Axis (mm): 360
Y-Axis (mm): 520
Z-Axis (mm): 610
Table working surface W x D (mm): Ø 250
Spindle Speed (rpm): 15.000
Produkt anfragen
Y-Axis (mm): 520
Z-Axis (mm): 610
Table working surface W x D (mm): Ø 250
Spindle Speed (rpm): 15.000
- Inline spindle with up to 15,000 rpm
- Preloaded recirculating ball screws in all axes against thermal deformation
- Spindle cooler
- User-friendly ergonomic loading and unloading through wide-opening machine doors
- Direct path measuring systems in all axes
- 5-axis simultaneous capability
- Optional: IKZ up to 70 bar (standard: 30 bar)
- Small footprint, large working area"
Details
Specifications - UC 250
| Travels | |
|---|---|
| X-Axis (mm) | 360 |
| Y-Axis (mm) | 520 |
| Z-Axis (mm) | 610 |
| A-Axis (°) | +30 / -120 |
| C-Axis (°) | 360 |
| Table | |
|---|---|
| Table working surface W x D (mm) | Ø 250 |
| Load max. (uniform distribution) (kg) | 100 |
| Distance from spindle nose to table (mm) | 65 - 675 |
| T-Slots (DIN 650) | 6 x 12mm - 60° |
| Spindle | |
|---|---|
| Spindle Taper | SK40 - BigPlus / BBT40 |
| Type | In-Line |
| Power S1/S6 (kW) | 10 / 14 |
| Torque S1/S6 (Nm) | 63,7 / 89,4 |
| Spindle Speed (rpm) | 15.000 |
| Feed Rate | |
|---|---|
| Rapid Traverse X/Y/Z-Axis (m/min) | 36 / 36 / 24 |
| Cutting Feed Rate X/Y/Z-Axis (mm/min) | 12 |
| Rapid Traverse A/B/C-Axis (1/min) | 25 / - / 25 |
| Cutting Feed Rate A/B/C-Axis (1/min) | 25 / - / 25 |
| ATC & Magazine | |
|---|---|
| ATC Type | Doppelgreifer |
| Magazine Capacity | 30 |
| Maximum Tool Diameter (mm) full / next pocket empty | 75 |
| With Empty Pockets (mm) | 120 |
| Maximum Tool Length (mm) | 240 |
| Maximum Tool Weight (kg) | 7 |
| Space & System Requirements | |
|---|---|
| Maximum Floor Spade (mm) W x L x H | 2.660 x 2.160 x 3.300 |
| Machine Net Weight (kg) | 6.700 |
| Electrical Power Consumption (kVA / A) | 40 |
| Air Requirements (bar) | 6 |
Spindle
Choose the spindle that suits you
| Spindle options | UC 250 | |
|---|---|---|
| Drehzahl max. (1/min) | 15.000 | 15.000 |
| Leistung S1/S6 (kW) | 10 / 14 | 10 / 14 |
| Drehmoment S1/S6 (Nm) | 63,7 / 89,4 | 63,7 / 89,4 |
| Schnittstelle | SK40BigPlus | BBT40 / HSK63-A |
| Standard / Optional | Standard | Optional |
Features
Always perfectly equipped
Great features of our standard equipment
- Heidenhain TNC 640 control system
- UC250x | UC320x: Direct-drive spindle 15,000 rpm HSK-A63 / SK 40
- Cooling system with cooling ring
- Linear scale measurement systems on all axes
- Thermal-expansion compensation system for spindle
- Internal coolant feed through the spindle (ICF 30 bar)
- Chip flushing
- Spindle cooler
- Working area illumination
- Oil skimmer
- Rinsing and compressed air gun
- Scraper-type chip conveyor and chip trolley
- Ethernet interface
With further optional equipment you can adapt the TAKUMI UC 250 to your needs
- Heidenhain TNC7 control system
- Touch probe system for workpiece measurement
- Touch probe system for tool measurement
- Programmable external cooling air
- Programmable cooling air through the spindle
- Oil mist separator
- Knoll production package
- Bypass filtration system
- Rotoclear
