- Our Takumi Machining Centers are equipped with the latest Heidenhein TNC control 640.
The standfast all-rounder
.png.1536.webp)
TAKUMI U 600
The U 600 is the perfect machining center for 5-axis production of small or medium-sized workpieces with a focus on tool and mold making. Thanks to its gantry design, the machine is optimally designed for your company's diverse production scenarios and combines a small footprint with great productivity - the powerful spindle with SK 40 or optional HSK63 tool holder and direct drive manages 15,000 or 24,000 rpm. In addition to the high rigidity and dynamics, the machine is characterized by high stability and resistance to thermal deformation, which is ensured by a preloaded ball screw in all axes and a spindle cooler.
Travels and Table
X-Axis (mm): 890
Y-Axis (mm): 1.050
Z-Axis (mm): 580
Table working surface W x D (mm): Ø 600
Spindle Speed (rpm): 15.000
Produkt anfragen
Y-Axis (mm): 1.050
Z-Axis (mm): 580
Table working surface W x D (mm): Ø 600
Spindle Speed (rpm): 15.000
- Motor spindle with up to 24,000 rpm
- Ideal for crane loading
- Preloaded recirculating ball screw in all axes against thermal deformation
- Spindle cooler
- Stable and rigid gantry construction with high temperature resistance
- User-friendly ergonomic loading and unloading due to wide opening machine doors
- Direct path measuring systems in all axes
- High rigidity and dynamics for precise milling results"
Details
Specifications - U 600
| Travels | |
|---|---|
| X-Axis (mm) | 890 |
| Y-Axis (mm) | 1.050 |
| Z-Axis (mm) | 580 |
| A-Axis (°) | +30 / -110 |
| C-Axis (°) | 360 |
| Table | |
|---|---|
| Table working surface W x D (mm) | Ø 600 |
| Load max. (uniform distribution) (kg) | 500 |
| Distance from spindle nose to table (mm) | 160 - 740 |
| T-Slots (DIN 650) | 5 x 14mm x 100mm |
| Spindle | |
|---|---|
| Spindle Taper | HSK63-A / SK40 - BigPlus / BBT40 |
| Type | In-Line |
| Power S1/S6 (kW) | 10 / 14 |
| Torque S1/S6 (Nm) | 63,7 / 89,4 |
| Spindle Speed (rpm) | 15.000 |
| Feed Rate | |
|---|---|
| Rapid Traverse X/Y/Z-Axis (m/min) | 36 |
| Cutting Feed Rate X/Y/Z-Axis (mm/min) | 20 |
| Rapid Traverse A/B/C-Axis (1/min) | 25 / - / 33 |
| Cutting Feed Rate A/B/C-Axis (1/min) | 25 / - / 33 |
| ATC & Magazine | |
|---|---|
| ATC Type | Doppelgreifer |
| Magazine Capacity | 30 |
| Maximum Tool Diameter (mm) full / next pocket empty | 75 |
| With Empty Pockets (mm) | 150 |
| Maximum Tool Length (mm) | 300 |
| Maximum Tool Weight (kg) | 7 |
| Space & System Requirements | |
|---|---|
| Maximum Floor Space (mm) W x L x H | 4.781 x 4.388 x 3.300 |
| Machine Net Weight (kg) | 14.000 |
| Electrical Power Consumption (kVA / A) | 80 / 160 |
| Air Requirements (bar) | 6 |
Spindle
Choose the spindle that suits you
| Spindle options | U 600 | ||||
|---|---|---|---|---|---|
| Drehzahl max. (1/min) | 15.000 | 15.000 | 15.000 | 20.000 | 24.000 |
| Leistung S1/S6 (kW) | 10 / 14 | 10 / 14 | 20 / 34 | 25 / 35 | 30 / 45 |
| Drehmoment S1/S6 (Nm) | 63,7 / 89,4 | 63,7 / 89,4 | 82 / 139,6 | 83,2 / 116,5 | 29 / 43,5 |
| Schnittstelle | HSK63-A | SK40BigPlus / BBT40 | SK40BigPlus / BBT40 / HSK63-A | HSK63-A | HSK63-A |
| Standard / Optional | Standard | Optional | Optional | Optional | Optional |
Features
Always perfectly equipped
Great features of our standard equipment
- Heidenhain TNC 640 control system
- U400 | U600: Direct-drive spindle 15,000 rpm SK40 BigPlus
- Cooling system with cooling ring
- Linear scale measurement systems on all axes
- Thermal-expansion compensation system for spindle
- Internal coolant feed through the spindle (ICF 30 bar)
- Chip flushing
- Spindle cooler
- Working area illumination
- Oil skimmer
- Rinsing and compressed air gun
- Scraper-type chip conveyor and chip trolley
- Ethernet interface
With further optional equipment you can adapt the TAKUMI U 600 to your needs
- Touch probe system for workpiece measurement
- Touch probe system for tool measurement
- Programmable external cooling air
- Programmable cooling air through the spindle
- Oil mist separator
- Knoll production package
- Bypass filtration system
- Rotoclear
Highlights

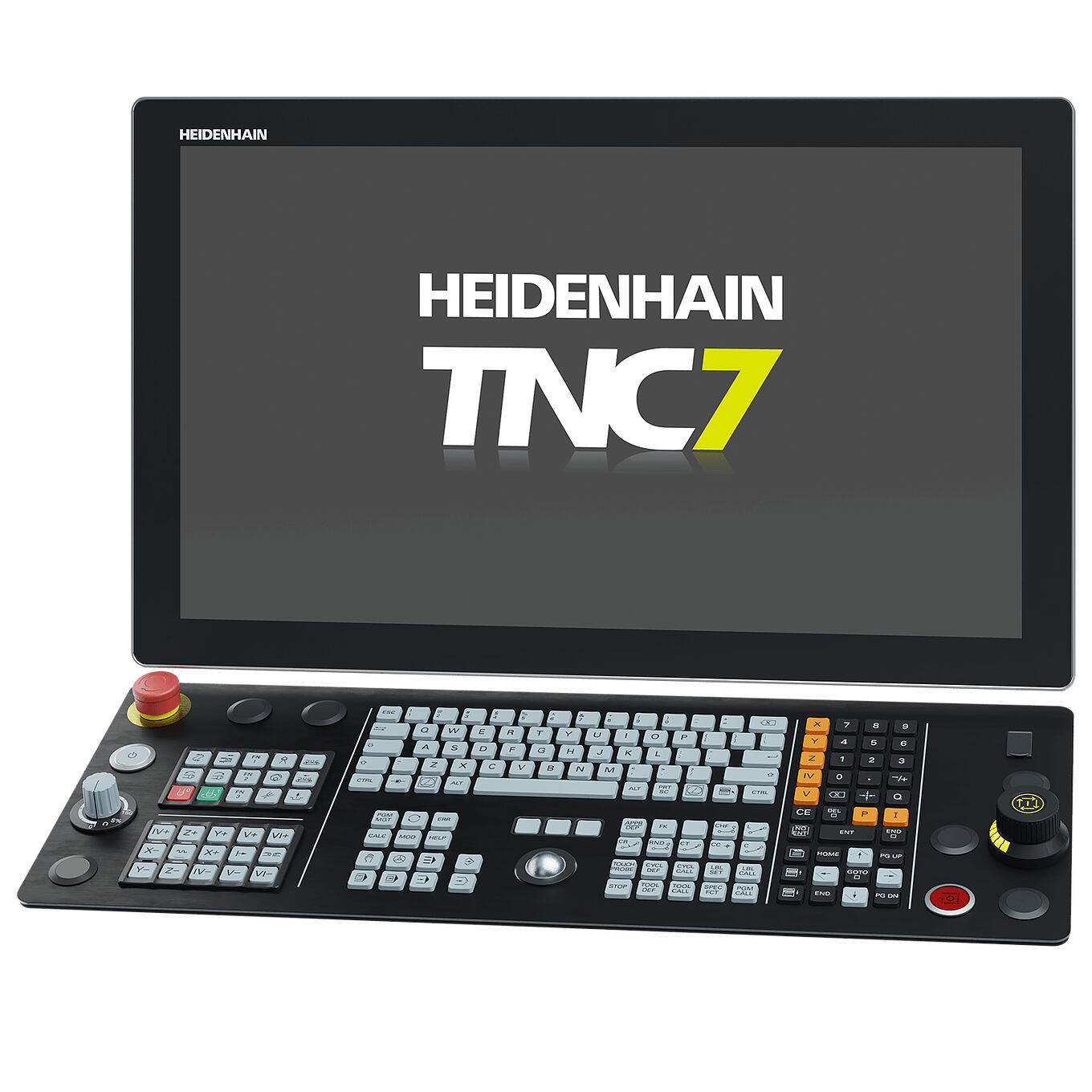

Heidenhain Control TNC 640
Precise High performance spindle
- With the U400 + U600 Takumi offers the optimal spindle for your demands
- Spindle speedsfrom 15.000 to 24.000 (rpm)
- Output upto 14kW – 45kW
- Interface: SK40 BigPlus – HSK-A63
.jpg.1360.jpg)
Extremely stiff and high-presision mechanical structure
- The load-bearing mechanical structures such as bed, pillar, bed sledge are made of heat-treated and stress-released Meehanite cast iron. The thereby gained absorption capacity enables low-vibration machining processes. This ensures high surface quality on the workpiece and increases the tool life.
- Portal construction and stepped column for maximum rigidity, optimized force flow, minimization of the spindle overhang and increased dynamics
- Three-plybed
