TAKUMI VC 1000
Versatile, universal and highly flexible - that is the TAKUMI VC 1000 cross table machining center with 3 axes (X-path with 1,067 mm length, Y-path and Z-path with 610 mm length each). The highly robust CNC machine offers high-precision machining with a universal range of applications and an optimal price-performance ratio. This makes the VC 1000 the ideal machining center for CNC production with maximum demands on precision and efficiency.
Travels and Table
X-Axis (mm): 1.067
Y-Axis (mm): 610
Z-Axis (mm): 610
Table working surface W x D (mm): 1.270 x 610
Spindle Speed (rpm): 15.000
Produkt anfragen
Y-Axis (mm): 610
Z-Axis (mm): 610
Table working surface W x D (mm): 1.270 x 610
Spindle Speed (rpm): 15.000
- Direct-drive spindle up to 15,000 rpm
- Spindle cooler
- User-friendly, ergonomic access for loading
Details
Specifications - VC 1000
| Travels | |
|---|---|
| X-Axis (mm) | 1.067 |
| Y-Axis (mm) | 610 |
| Z-Axis (mm) | 610 |
| Table | |
|---|---|
| Table working surface W x D (mm) | 1.270 x 610 |
| Load max. (uniform distribution) (kg) | 1.000 |
| Distance from spindle nose to table (mm) | 141 - 751 |
| T-Slots (DIN 650) | 5 x 18mm x 100mm |
| Spindle | |
|---|---|
| Spindle Taper | SK40 - BigPlus / BBT40 |
| Type | In-Line |
| Power S1/S6 (kW) | 10 / 14 |
| Torque S1/S6 (Nm) | 63,7 / 89,4 |
| Spindle Speed (rpm) | 15.000 |
| Feed Rate | |
|---|---|
| Rapid Traverse X/Y/Z-Axis (m/min) | 36 / 36 / 24 |
| Cutting Feed Rate X/Y/Z-Axis (mm/min) | 12 |
| ATC & Magazine | |
|---|---|
| ATC Type | Doppelgreifer |
| Magazine Capacity | 40 |
| Maximum Tool Diameter (mm) full / next pocket empty | 75 |
| With Empty Pockets (mm) | 150 |
| Maximum Tool Length (mm) | 300 |
| Maximum Tool Weight (kg) | 7 |
| Space & System Requirements | |
|---|---|
| Maximum Floor Space (mm) W x L x H | 4.900 x 3.365 x 2.932 |
| Machine Net Weight (kg) | 6.750 |
| Electrical Power Consumption (kVA / A) | 30 |
| Air Requirements (bar) | 6 |
Spindle
Choose the spindle that suits you
| Spindle options | VC 1000 | |
|---|---|---|
| Drehzahl max. (1/min) | 15.000 | 15.000 |
| Leistung S1/S6 (kW) | 10 / 14 | 10 / 14 |
| Drehmoment S1/S6 (Nm) | 63,7 / 89,4 | 63,7 / 89,4 |
| Schnittstelle | SK40BigPlus | BBT40 / HSK63-A |
| Standard / Optional | Standard | Optional |
Features
Always perfectly equipped
Great features of our standard equipment
- Heidenhain Control TNC 640
- VC 0852/ VC 1052: Direct drive spindle 15.000 1/min. SK40BigPlus
- Coolant wash-down system
- Spindle chiller
- Full enclosure
- Programmable airblow machining
- Oil Skimmer
- Wash-down gun and air gun
- Chip conveyor and cart
- Manual pulse generator (MPG)
- Ethernet interface
With further optional equipment you can adapt the TAKUMI VC 1000 to your needs

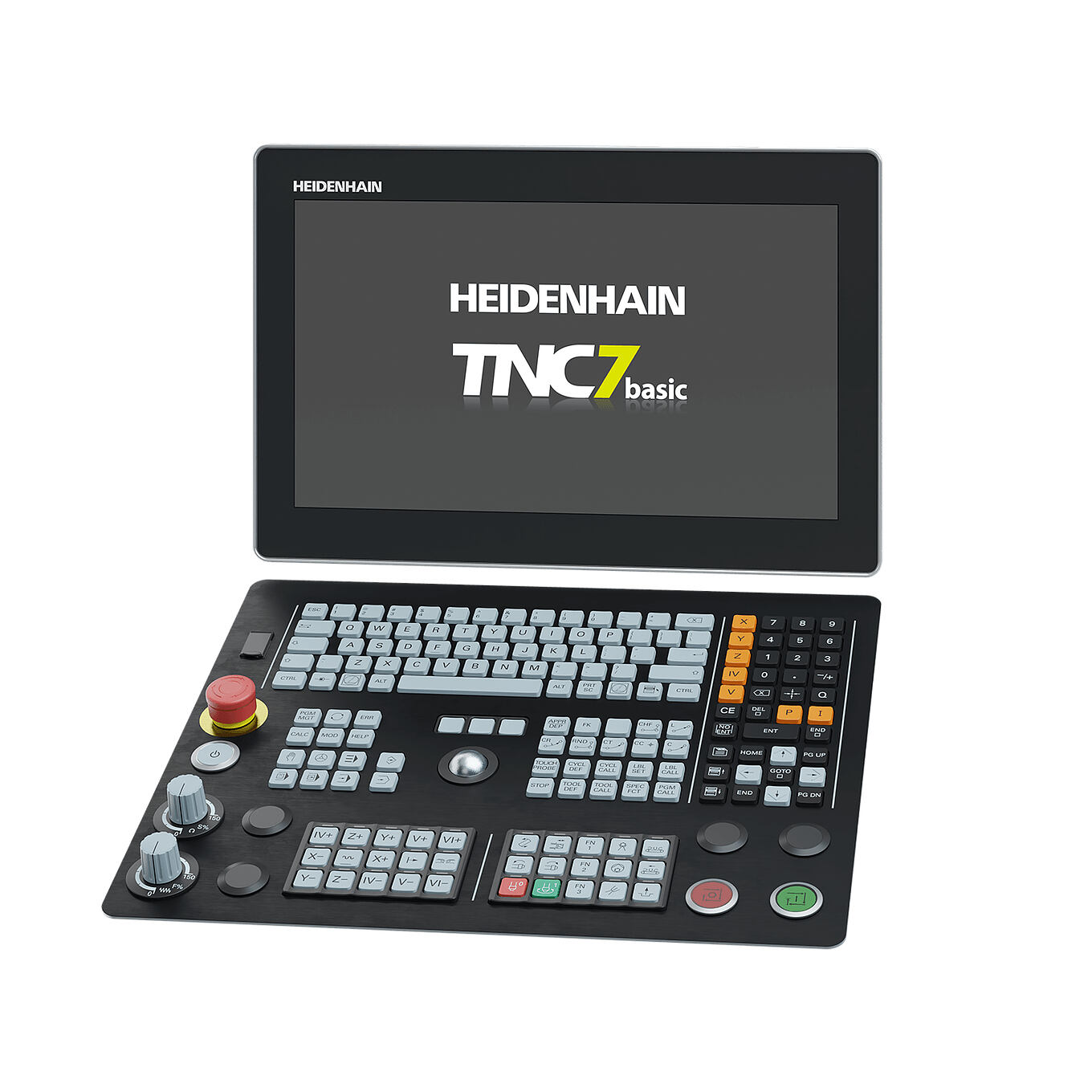

- Heidenhain control TNC7 basic
- Coolant through spindle (CTS 30 bar)
- Rotary table (4th / 5th axis)
- Part probe measurement system
- Tool probe measurement system
- Programmable airblow through spindle machining
- Oil mist device
- Oil mist collector
- Scraper type conveyor instead of chain type conveyor
- Production package Knoll
- Bypass Filter
- Rotoclear
Highlights
Heidenhain Control TNC 640
Precise High performance spindle
- With the VC-series, Takumi offers the optimal spindle for your demands
- Spindle speeds 8.000 or 15.000 (rpm)
- Output up to 10kW – 25kW
- Interface: SK40 BigPlus / BBT 40 / BBT 50
Extremely stiff and high-presision mechanical structure
- The load-bearing mechanical structures such as bed, pillar, bed sledge are made of heat-treated and stress-released Meehanite cast iron. The thereby gained absorption capacity enables low-vibration machining processes. This ensures high surface quality on the workpiece and increases the tool life.
