Compact high performers

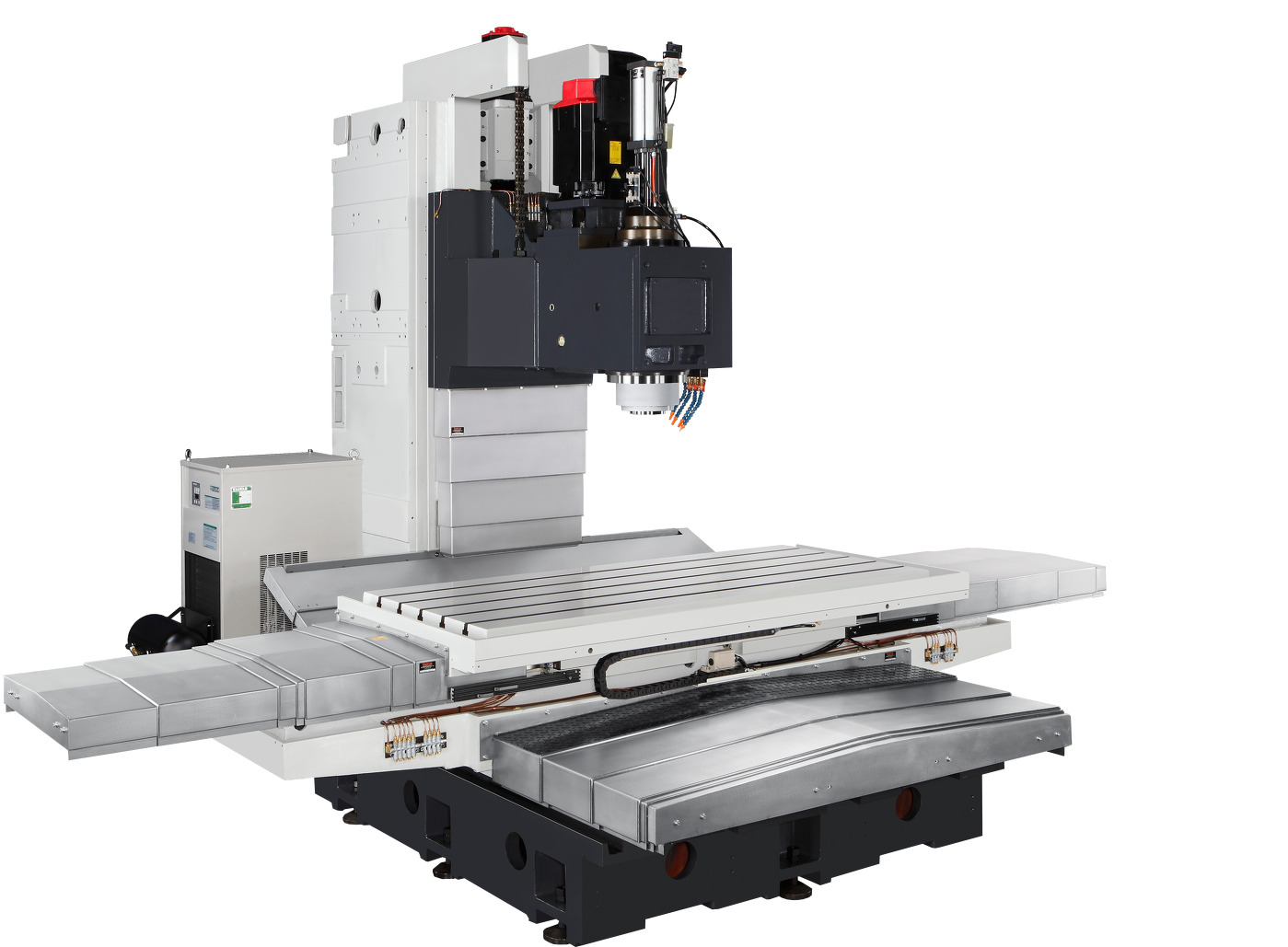

TAKUMI V 15
The compact V 15 milling machine is the ideal choice for your operation if you are looking for a space-saving and cost-effective all-round CNC solution for machining medium-sized workpieces in tool and mold making. With up to 8,000 rpm (revolutions per minute), the integrated spindle, which can be either a belt or gear spindle, enables high-performance milling and the highly productive production of small batches.
Travels and Table
X-Axis (mm): 1.524
Y-Axis (mm): 762
Z-Axis (mm): 720
Table working surface W x D (mm): 1.600 x 760
Spindle Speed (rpm): 8.000
Produkt anfragen
Y-Axis (mm): 762
Z-Axis (mm): 720
Table working surface W x D (mm): 1.600 x 760
Spindle Speed (rpm): 8.000
- Belt-driven spindle or gear-driven spindle up to 12,000 rpm
- Pretensioned ballscrews for all axes to prevent thermal deformation
- Spindle cooler
- User-friendly, ergonomic access for loading
- Optional: Gear-driven spindle torque up to 640 Nm (S1)
Details
Specifications - V 15
| Travels | |
|---|---|
| X-Axis (mm) | 1.524 |
| Y-Axis (mm) | 762 |
| Z-Axis (mm) | 720 |
| Table | |
|---|---|
| Table working surface W x D (mm) | 1.600 x 760 |
| Load max. (uniform distribution) (kg) | 1.500 |
| Distance from spindle nose to table (mm) | 150 - 870 |
| T-Slots (DIN 650) | 5 x 22mm x 150mm |
| Spindle | |
|---|---|
| Spindle Taper | SK50 / BT50 |
| Type | Riemen |
| Power S1/S6 (kW) | 15 / 25 |
| Torque S1/S6 (Nm) | 95,5 / 159 |
| Spindle Speed (rpm) | 8.000 |
| Feed Rate | |
|---|---|
| Rapid Traverse X/Y/Z-Axis (m/min) | 18 / 18 / 16 |
| Cutting Feed Rate X/Y/Z-Axis (mm/min) | 5 |
| ATC & Magazine | |
|---|---|
| ATC Type | Doppelgreifer |
| Magazine Capacity | 24 |
| Maximum Tool Diameter (mm) full / next pocket empty | 105 |
| With Empty Pockets (mm) | 220 |
| Maximum Tool Length (mm) | 300 |
| Maximum Tool Weight (kg) | 15 |
| Space & System Requirements | |
|---|---|
| Maximum Floor Spade (mm) W x L x H | 7.000 x 5.600 x 3.256 |
| Machine Net Weight (kg) | 13.000 |
| Electrical Power Consumption (kVA / A) | 35 / 70 |
| Air Requirements (bar) | 6 |
Spindle
Choose the spindle that suits you
| Spindle options | V 15 | |
|---|---|---|
| Drehzahl max. (1/min) | 8.000 | 6.000 |
| Leistung S1/S6 (kW) | 15 / 25 | 15 / 25 |
| Drehmoment S1/S6 (Nm) | 95,5 / 159 | 384 / 640 |
| Schnittstelle | SK50 | SK50 |
| Standard / Optional | Standard | Optional |
Features
Always perfectly equipped
Great features of our standard equipment
- Heidenhain Control TNC 640
- Belt drive spindle 12.000 1 /min. SK40BigPlus
- Coolant wash-down system
- Spindle chiller
- Full enclosure
- Programmable airblow machining
- Oil Skimmer
- Wash-down gun and air gun
- Chip conveyor and cart
- Manual pulse generator (MPG)
- Ethernet interface
With further optional equipment you can adapt the TAKUMI V 15 to your needs
- Coolant through spindle (CTS 30 bar)
- Rotary table (4th / 5th axis)
- Part probe measurement system
- Tool probe measurement system
- Programmable airblow through spindle machining
- Oil mist device
- Oil mist collector
- Scraper type conveyor instead of chain type conveyor
- Production package Knoll
- Bypass Filter
- Rotoclear
Highlights
Heidenhain Control TNC 640
Precise High performance spindle
- With the VC-series, Takumi offers the optimal spindle for your demands
- Spindle speeds 8.000 or 15.000 (rpm)
- Output up to 10kW – 25kW
- Interface: SK40 BigPlus / BBT 40 / BBT 50
Extremely stiff and high-presision mechanical structure
- The load-bearing mechanical structures such as bed, pillar, bed sledge are made of heat-treated and stress-released Meehanite cast iron. The thereby gained absorption capacity enables low-vibration machining processes. This ensures high surface quality on the workpiece and increases the tool life.
