Our TAKUMI Machining Centers are equipped with the latest Heidenhain control TNC 7.
TAKUMI G 600
Travels and Table
X-Axis (mm): 600
Y-Axis (mm): 600
Z-Axis (mm): 350
Table working surface W x D (mm): 600 x 600
Torque S1/S6 (Nm): 8,12 / 9,74
Produkt anfragen
Y-Axis (mm): 600
Z-Axis (mm): 350
Table working surface W x D (mm): 600 x 600
Torque S1/S6 (Nm): 8,12 / 9,74
Details
Specifications - G 600
| Travels | |
|---|---|
| X-Axis (mm) | 600 |
| Y-Axis (mm) | 600 |
| Z-Axis (mm) | 350 |
| Table | |
|---|---|
| Table working surface W x D (mm) | 600 x 600 |
| Load max. (uniform distribution) (kg) | 500 |
| Distance from spindle nose to table (mm) | 120 - 470 |
| Distance between columns (mm) | 680 |
| T-Slots (DIN 650) | 6 x 14 x 100 |
| Spindle | |
|---|---|
| Spindle Taper | HSK40-E |
| Type | Motorspindel |
| Torque S1/S6 (Nm) | 8,12 / 9,74 |
| Spindle Speed (rpm) | 30.000 |
| Feed Rate | |
|---|---|
| Rapid Traverse X/Y/Z-Axis (m/min) | 30 / 30 / 30 |
| Cutting Feed Rate X/Y/Z-Axis (mm/min) | 20 |
| ATC & Magazine | |
|---|---|
| ATC Type | Doppelgreifer |
| Magazine Capacity | 20 |
| Maximum Tool Diameter (mm) full / next pocket empty | 75 |
| With Empty Pockets (mm) | 100 |
| Maximum Tool Length (mm) | 200 |
| Maximum Tool Weight (kg) | 1,5 |
| Space & System Requirements | |
|---|---|
| Maximum Floor Space (mm) W x L x H | 2.805 x 3.659 x 2.670 |
| Machine Net Weight (kg) | 5.500 |
| Electrical Power Consumption (kVA / A) | 30 |
| Air Requirements (bar) | 6 |
Spindle
Choose the spindle that suits you
| Spindle options | G 600 |
|---|---|
| Drehzahl max. (1/min) | 30.000 |
| Leistung S1/S6 (kW) | 10 / 12 |
| Drehmoment S1/S6 (Nm) | 8,12 / 9,74 |
| Schnittstelle | HSK 40 E |
| Standard / Optional | Standard |
Features
Always perfectly equipped
Great features of our standard equipment
- Heidenhain control TNC 7
- Graphite extraction system
- Absolute position measuring systems
- 25,000 rpm, HSK 50 E, motor spindle
- System for compensating thermal spindle expansion
- Chip flushing
- Spindle cooler
- Complete enclosure of the working area
- Ethernet interface
- Tool changer with arm, 30 positions
With further optional equipment you can adapt the TAKUMI G 600 to your needs
- Cooling system for the ball screw
- Touch probe system for workpiece measurement
- Probing system for tool measurement
- Electronic handwheel
- Programmable external cooling air
- Programmable cooling air through the spindle
Highlights

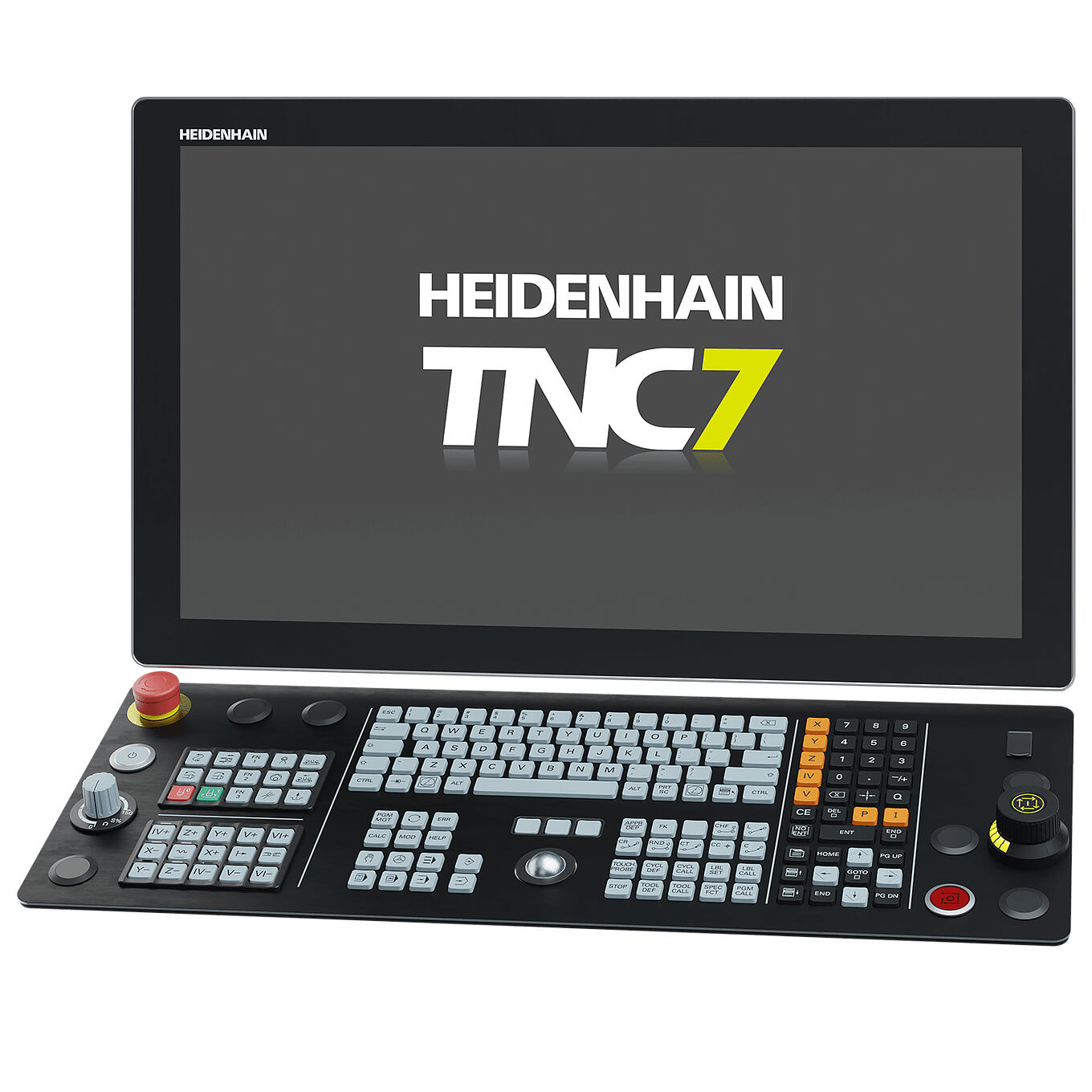

Heidenhain control TNC 7
Extraction unit
- Fully-enclosed covers make sure a safe, clean and healthy working environment and effectively reduce graphite particles contamination to its minimum.
Vaccum system on the headstock
- The particle-collection nozzle keeps a distance at 150mm to the tool tip which not only makes the particle-collection rate above 83%,but also avoids from the motion conflict.
Longevity
- Double protection.
- Seamless, overlapping telescopic covers ensure smooth transitions.
- Highly effective particle protection shields the dust-resistant ball screws and linear guides from graphite contamination — significantly extending their service life.
Ergonomics
Centralized maintenance units as well as easily accessible working and operator interfaces ensure smooth setup processes and efficient production workflows.
Precision High-Performance Spindle
With the G Series, TAKUMI offers the ideal spindle for your specific application requirements.
- Speeds ranging from 18,000–30,000 rpm
- Power range: 10–30 kW
- Interfaces: HSK 40 E / HSK 63 A
Extremely Rigid and Highly Precise Mechanical Structure
- The load-bearing mechanical structures — such as the machine bed, column, and saddle — are made of heat-treated Meehanite cast iron, free of residual stress.
- The resulting vibration-absorbing capability enables low-vibration machining processes. This ensures excellent surface quality on the workpiece and increases tool life.
Mechanical Accuracy
- To increase the durability of wear parts, TAKUMI follows the philosophy of generating geometric accuracy directly from the mechanics. During machine assembly, the highest level of effort is applied — for example, mounting surfaces are hand-scraped.
- Components are aligned with maximum precision and assembled with utmost care. This reduces the need for subsequent compensation via the machine control system to an absolute minimum.
Thermal Stability
To provide you with the ideal tool for high-precision machining, TAKUMI equips its machines with the following features:
- Optional core-cooled and preloaded ball screw
- Thermal compensation of spindle expansion including sensors
- Liquid-cooled milling spindle
- Glass scales
Reliable Results
To offer you the perfect tool for high-precision machining, the following measures have been consistently implemented in the TAKUMI G Series CNC machining centers:
- Oversized, high-precision roller linear guides on all three axes
- Preloaded ball screws to absorb thermal deformation and maintain highest accuracy
- Up to six guide blocks per axis for a balanced combination of dynamics and precision
Dynamics
- All moving mechanical elements are designed to be inherently rigid and weight-reduced.
- The high-precision roller linear guides ensure fast response during acceleration and deceleration, enabling high dynamics. Their large contact surfaces also provide optimal load distribution across the guideways. The load capacity and torsional rigidity of each axis are maximized, reducing guideway wear and compensating for vibrations even under high cutting forces.
- The optimal number and positioning of guide blocks further enhance stiffness and ensure consistent accuracy during long-term operation.
Reasons for Your Success with the TAKUMI G Series
- TAKUMI has been a reliable partner for industry and research for over 30 years
- Product development closely aligned with customer and market requirements
- G Series designed specifically for graphite machining
- Service support through the established HURCO service network (PLC-based)
- Sales and customer support provided by the proven HURCO network
- Increased longevity through a fully enclosed machining area, achieved with an integrated vacuum system and efficient multi-layer covers for ball screws and linear guides
- Accuracy through a runout-optimized built-in spindle, rigid gantry construction, and targeted measures for temperature stability
- Process reliability during long machining cycles with surface finishes requiring no rework
- The ideal machine model for every workpiece size
