Our TAKUMI Machining Centers are equipped with the latest Heidenhain TNC control 7.
Powerful multitasker
.png.1536.webp)

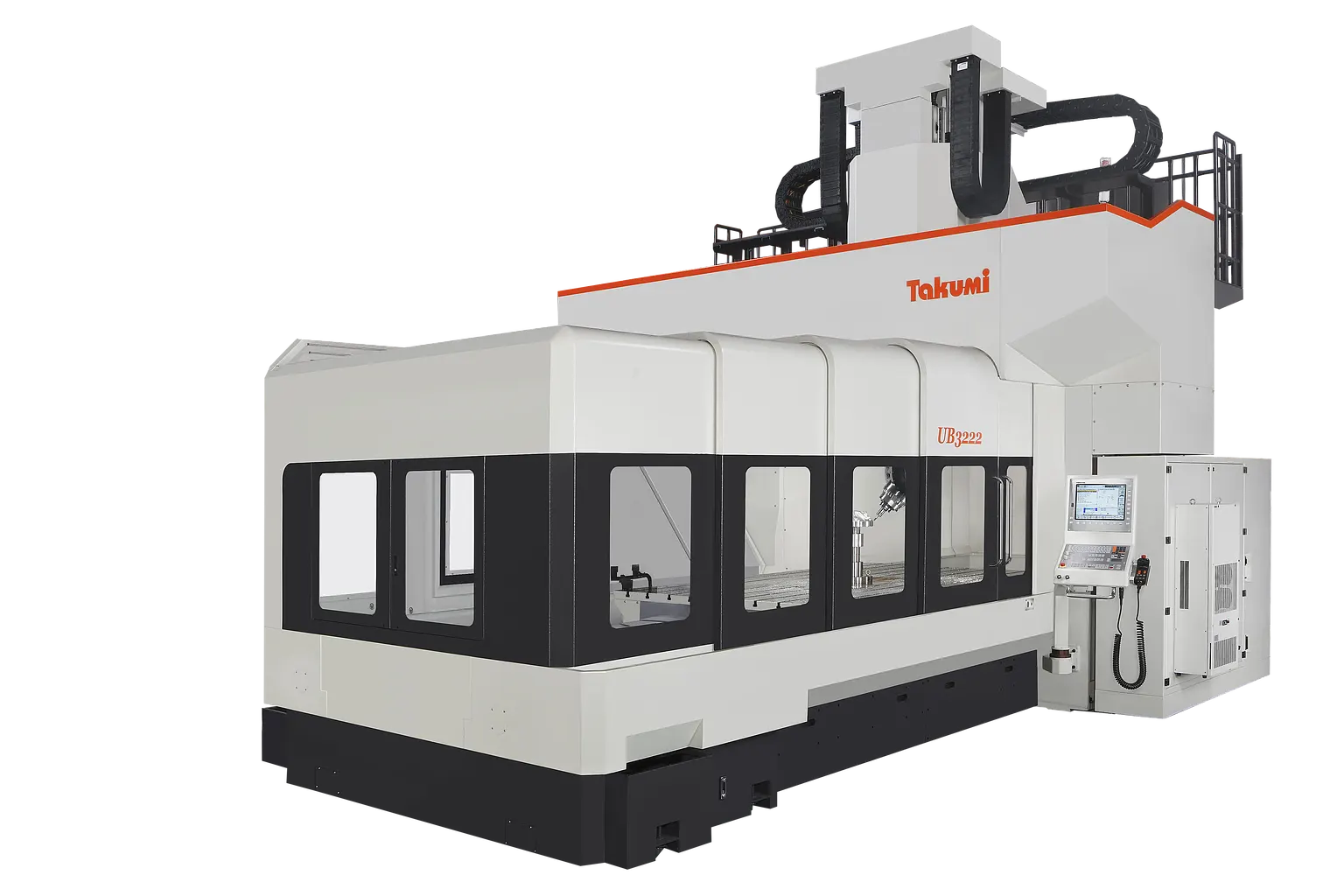

TAKUMI UB 2222
The UB 2222 is a high-precision 5-axis CNC machine that has been specially developed for machining large and complex workpieces. With its robust design and state-of-the-art control technology, it offers maximum accuracy and efficiency in production.
The machining center is characterized by its highly rigid design with a large table clamping surface, which ensures reliable machining and precise milling results even with a maximum table load of 8,000 kg. Thanks to the 5-axis fork head, the 5-axis simulatan option and large traverse paths (2,200 mm x-travel, 2,250 mm y-travel, 1,200 mm z-travel), even complex workpieces are no problem for the machine.
The machining center is characterized by its highly rigid design with a large table clamping surface, which ensures reliable machining and precise milling results even with a maximum table load of 8,000 kg. Thanks to the 5-axis fork head, the 5-axis simulatan option and large traverse paths (2,200 mm x-travel, 2,250 mm y-travel, 1,200 mm z-travel), even complex workpieces are no problem for the machine.
Travels and Table
X-Axis (mm): 2.200
Y-Axis (mm): 2.250
Z-Axis (mm): 1.200
Table working surface W x D (mm): 2.400 x 2.100
Spindle Speed (rpm): 24.000
Produkt anfragen
Y-Axis (mm): 2.250
Z-Axis (mm): 1.200
Table working surface W x D (mm): 2.400 x 2.100
Spindle Speed (rpm): 24.000
Motor spindle with 24,000 rpm
- Ideal for crane loading
- Preloaded recirculating ball screws in all axes to prevent thermal deformation
- Spindle cooler
- User-friendly, ergonomic loading and unloading thanks to wide-opening machine doors
- Direct path measuring systems in all axes
- High rigidity and dynamics for precise milling results
- Stable and rigid gantry construction with high temperature resistance
Details
Specifications - UB 2222
| Travels | |
|---|---|
| X-Axis (mm) | 2.200 |
| Y-Axis (mm) | 2.250 |
| Z-Axis (mm) | 1.200 |
| B-Axis (°) | +/- 100 |
| C-Axis (°) | +/- 220 |
| Table | |
|---|---|
| Table working surface W x D (mm) | 2.400 x 2.100 |
| Load max. (uniform distribution) (kg) | 8.000 |
| Distance between columns (mm) | 2.460 |
| T-Slots (DIN 650) | 10 x 22mm x 200mm |
| Spindle | |
|---|---|
| Spindle Taper | HSK63-A |
| Type | Motorspindel |
| Power S1/S6 (kW) | 42 / 55 |
| Torque S1/S6 (Nm) | 66,8 / 87,5 |
| Spindle Speed (rpm) | 24.000 |
| Feed Rate | |
|---|---|
| Rapid Traverse X/Y/Z-Axis (m/min) | 20 / 16 / 16 |
| Cutting Feed Rate X/Y/Z-Axis (mm/min) | 12 |
| Rapid Traverse A/B/C-Axis (1/min) | - / 30 / 30 |
| Cutting Feed Rate A/B/C-Axis (1/min) | - / 30 / 30 |
| ATC & Magazine | |
|---|---|
| ATC Type | Pick-Up |
| Magazine Capacity | 40 |
| Maximum Tool Diameter (mm) full / next pocket empty | 95 |
| With Empty Pockets (mm) | 125 |
| Maximum Tool Length (mm) | 300 |
| Maximum Tool Weight (kg) | 8 |
| Space & System Requirements | |
|---|---|
| Maximum Floor Space (mm) W x L x H | 8.580 x 5.778 x 6.000 |
| Machine Net Weight (kg) | 38.000 |
| Electrical Power Consumption (kVA / A) | 125 |
| Air Requirements (bar) | 6 |
Spindle
Choose the spindle that suits you
| Spindle options | UB 2222 | ||
|---|---|---|---|
| Drehzahl max. (1/min) | 24.000 | 15.000 | 13.000 |
| Leistung S1/S6 (kW) | 42 / 55 | 50 / 65 | 47 / 63,5 |
| Drehmoment S1/S6 (Nm) | 66,8 / 87,5 | 95,5 / 124 | 149,6 / 202 |
| Schnittstelle | HSK63-A | HSK100-A | HSK100-A |
| Standard / Optional | Optional | Optional | Optional |
Features
Always perfectly equipped
Great features of our standard equipment
- Heidenhain control TNC 7
- Coolant system via coolant ring
- Absolute position measuring systems in all axes
- System for compensating for thermal spindle expansion
- Internally cooled ball screw of the X-axis
- Internal coolant supply through the spindle (IKZ 30 bar)
- Chip flushing
- Spindle cooler
- Complete enclosure of the work area
- Oil skimmer
- Flushing and compressed air gun
- Scraper belt chip conveyor and chip cart
- Ethernet interface
With further optional equipment you can adapt the TAKUMI UB 2222 to your needs
- Touch probe for workpiece measurement
- Touch probe for tool measurement
- Internally cooled ball screw of the Y and Z axes
- Programmable external cooling air
- Programmable cooling air through the spindle
- Oil mist separator
- Knoll production package
- Bypass filter system
- Rotoclear
Highlights
Heidenhain Control TNC 7
Mechanical Accuracy
- To increase the durability of wear parts, TAKUMI follows the philosophy of generating geometric accuracy directly from the mechanics. During machine assembly, the highest level of effort is applied — for example, mounting surfaces are hand-scraped.
- Components are aligned with maximum precision and assembled with the utmost care. This reduces the need for subsequent compensation via the machine control system to an absolute minimum.
Thermal Stability
The enemy of accuracy is thermal expansion. To eliminate this and provide you with highly precise machining, TAKUMI equips its machines with the following features:
- Preloaded ball screws with optional internal cooling
- Thermal compensation of spindle expansion including sensors
- Liquid-cooled milling spindle
- Glass scales
Reliable Results
To provide you with the ideal tool for high-precision machining, the following measures have been consistently implemented in the U Series:
- Oversized, high-precision roller linear guides in the three main axes
- Preloaded ball screws to absorb thermal deformation and maintain highest accuracy
- Up to six guide blocks for a balanced combination of dynamics and precision
Dynamics
- All moving mechanical elements are designed to be inherently rigid and weight-optimized.
The high-precision roller linear guides ensure fast response during acceleration and deceleration, enabling high dynamics. Their large contact surfaces also provide optimal load distribution across the guideways. The load capacity and torsional rigidity of each axis are maximized, reducing guideway wear and compensating for vibrations even under high cutting forces.
The optimal number and positioning of guide blocks enhance stiffness and ensure consistent accuracy during long-term operation.
The optimal number and positioning of guide blocks enhance stiffness and ensure consistent accuracy during long-term operation.
Loading
The loading access points of the TAKUMI U Series are extremely spacious. Whether loading large components via crane or performing quick changeovers for smaller parts, all workflows run smoothly and without restriction.
Accessibility
Centralized maintenance units as well as easily accessible working and operator interfaces ensure smooth setup processes and efficient production workflows.
Integrated Oil Skimmer
The oil skimmer prevents the coolant emulsion from deteriorating, even under significantly fluctuating or high temperatures. This effectively increases the service life of the coolant.
Chip Management
Measures such as:
- Strategically positioned coolant flushing systems
- Steeply inclined interior walls
- Hinge-type or optional scraper conveyors
- Wide-open chip drop openings
- Hardened screw conveyors (not applicable to the U 400)
ensure that chip volume and heat are removed effectively and reliably.
Reasons for choosing TAKUMI 5-Axis Machining Centers
- TAKUMI has been a successful partner for industry and research for over 30 years
- Product development closely aligned with customer and market requirements
- U Series designed for both mold & die applications and parts production
- Service support through the established HURCO service network
- Longevity ensured by oversized structural elements and high-quality components
- Accuracy through robust and torsion-resistant gantry construction and targeted measures for increased thermal stability, reducing thermal expansion
- Process reliability for long machining cycles with surface finishes that require no reworking
- Highest form and contour accuracy in 5-axis simultaneous machining and maximum efficiency in 5-sided machining
