Our TAKUMI Machining Centres are equipped with the latest Heidenhain TNC control 640 - H 6 is equipped with TNC 620.
High-end in the compact class

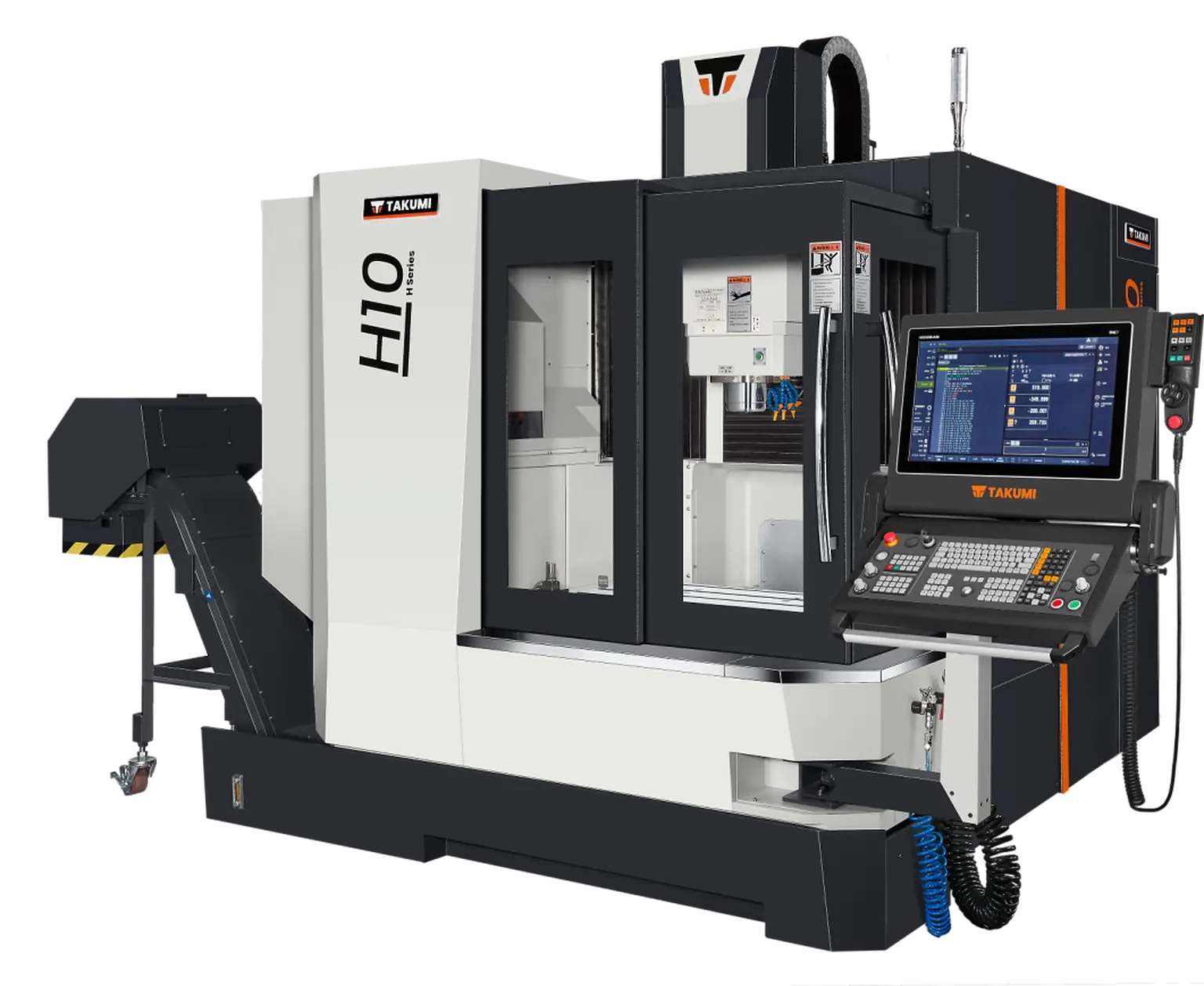

TAKUMI H 10
The machine that makes your entry into HSC milling possible with the ideal price-performance ratio - the H 10 CNC machining center takes up little floor space and is still powerful. The portal machining center is suitable for the production of small workpieces.
Travels and Table
X-Axis (mm): 1.020
Y-Axis (mm): 700
Z-Axis (mm): 500
Table working surface W x D (mm): 1.050 x 700
Spindle Speed (rpm): 15.000
Produkt anfragen
Y-Axis (mm): 700
Z-Axis (mm): 500
Table working surface W x D (mm): 1.050 x 700
Spindle Speed (rpm): 15.000
- Motor spindles rated for up to 36,000 rpm
- User-friendly, ergonomic access for loading
- Stable and rigid bridge-type design concept featuring excellent resistance to high temperatures
- Absolute direct measuring systems
- System to offset thermal spindle expansion
- Spindle cooling system
- Internal coolant supply through the spindle (30 bar ICF, optionally 70 bar)
Details
Specifications - H 10
| Travels | |
|---|---|
| X-Axis (mm) | 1.020 |
| Y-Axis (mm) | 700 |
| Z-Axis (mm) | 500 |
| Table | |
|---|---|
| Table working surface W x D (mm) | 1.050 x 700 |
| Load max. (uniform distribution) (kg) | 800 |
| Distance from spindle nose to table (mm) | 180 - 680 |
| Distance between columns (mm) | 1.080 |
| T-Slots (DIN 650) | 6 x 18 x 125 |
| Spindle | |
|---|---|
| Spindle Taper | HSK63-A / SK40 - BigPlus / BBT40 |
| Type | In-Line |
| Power S1/S6 (kW) | 10 / 14 |
| Torque S1/S6 (Nm) | 63,7 / 89,4 |
| Spindle Speed (rpm) | 15.000 |
| Feed Rate | |
|---|---|
| Rapid Traverse X/Y/Z-Axis (m/min) | 30 / 30 / 30 |
| Cutting Feed Rate X/Y/Z-Axis (mm/min) | 20 |
| ATC & Magazine | |
|---|---|
| ATC Type | Doppelgreifer |
| Magazine Capacity | 30 |
| Maximum Tool Diameter (mm) full / next pocket empty | 75 |
| With Empty Pockets (mm) | 120 |
| Maximum Tool Length (mm) | 300 |
| Maximum Tool Weight (kg) | 7 |
| Space & System Requirements | |
|---|---|
| Maximum Floor Space (mm) W x L x H | 4.520 x 4.290 x 2.830 |
| Machine Net Weight (kg) | 9.100 |
| Electrical Power Consumption (kVA / A) | 50 / 72 / 400 |
| Air Requirements (bar) | 6 |
Spindle
Choose the spindle that suits you
| Spindle options | H 10 | |||||
|---|---|---|---|---|---|---|
| Drehzahl max. (1/min) | 15.000 | 15.000 | 15.000 | 20.000 | 24.000 | 36.000 |
| Leistung S1/S6 (kW) | 10 / 14 | 10 / 14 | 20 / 34 | 25 / 35 | 30 / 45 | 20 / 26 |
| Drehmoment S1/S6 (Nm) | 63,7 / 89,4 | 63,7 / 89,4 | 82 / 139,6 | 83,2 / 116,5 | 29 / 43,5 | 10,4 / 13,5 |
| Schnittstelle | SK40BigPlus | BBT40 / HSK63-A | SK40BigPlus / BBT40 / HSK63-A | HSK63-A | HSK63-A | HSK50-E |
| Standard / Optional | Standard | Optional | Optional | Optional | Optional | Optional |
Features
Always perfectly equipped
Great features of our standard equipment
- Heidenhain iTNC 640 Control
- Spindle thermal compensation system
- Chip flushing
- Spindle cooling
- Full enclosure
- Programmable airblow machining
- Oil mist device
- Wash down gun and air gun
- Chip conveyor and cart
- Ethernet interface
- 15,000 rpm, CAT/BT40, inline spindle
- Coolant through spindle (CTS 30bar)
- Manual pluse generator (MPG)
- Linear Scales
With further optional equipment you can adapt the TAKUMI H 10 to your needs
- Heidenhain-Control TNC 7
- Rotary table (4th/5th axis)
- Touch probe for tool measurement
- Part probe measurement system
- Oil mist device
- Oil mist collector
- Scraper type conveyor
- Producation package Knoll
- Bypass Filter
- Rotoclear
- Ballscrew cooling system
- Internal coolant supply through the spindle (IKZ 70 bar)
- Automatic doors
Highlights
Heidenhain Control TNC 640
Precise High performance spindle
- With the H-series, TAKUMI offers the optimal spindle for your demands
- Spindle speeds from 15.000 to 36.000 rpm
- Output up to 10kW – 15kW
- Interface: HSK63-A / SK40 - BigPlus / SK50 - BigPlus / BBT40 / BBT50
Extremely stiff and high-presision mechanical structure
- The load-bearing mechanical structures such as bed, pillar, bed sledge are made of heat-treated and stress-released Meehanite cast iron.
- The thereby gained absorption capacity enables low-vibration machining processes. This ensures high surface quality on the workpiece and increases the tool life.
