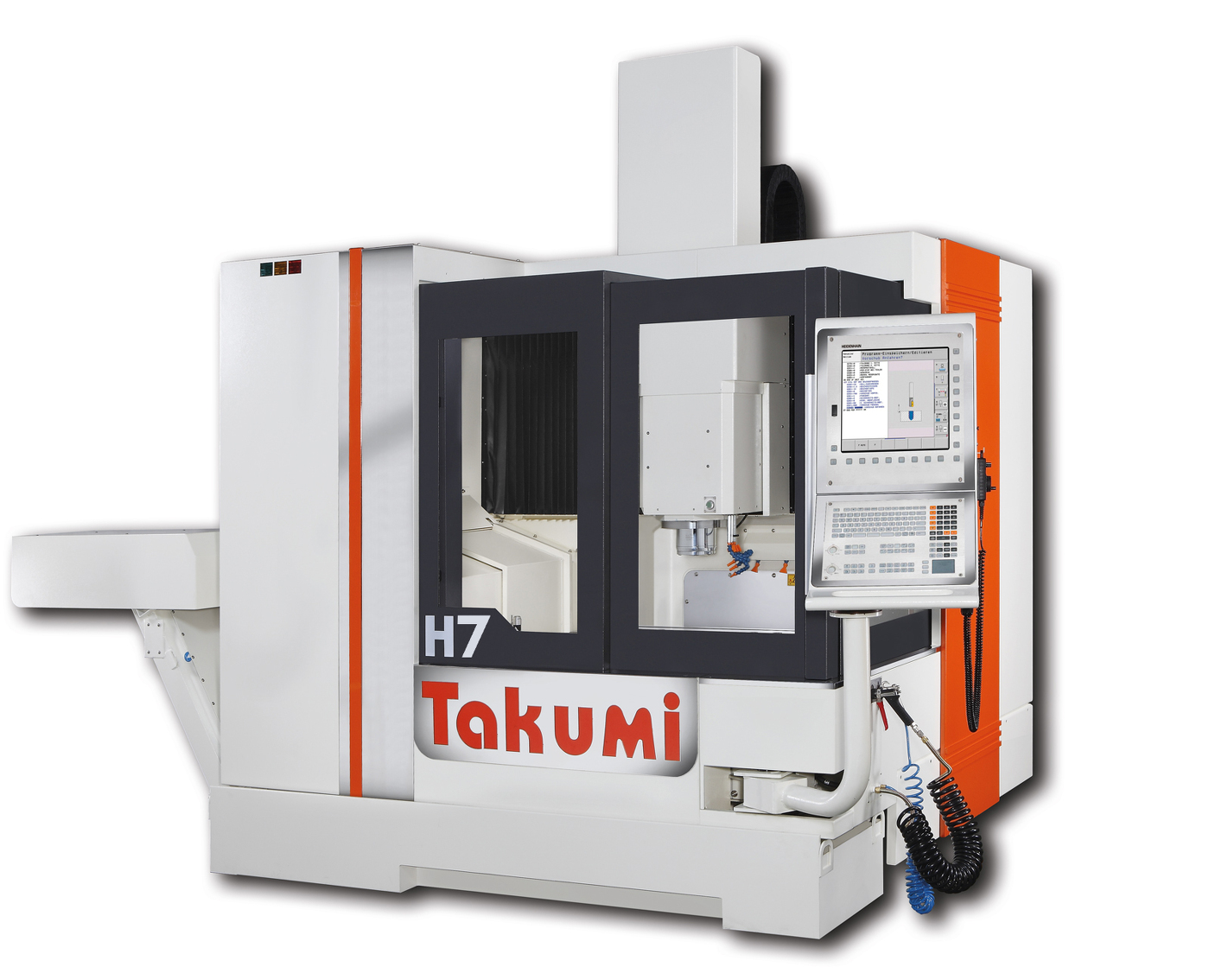

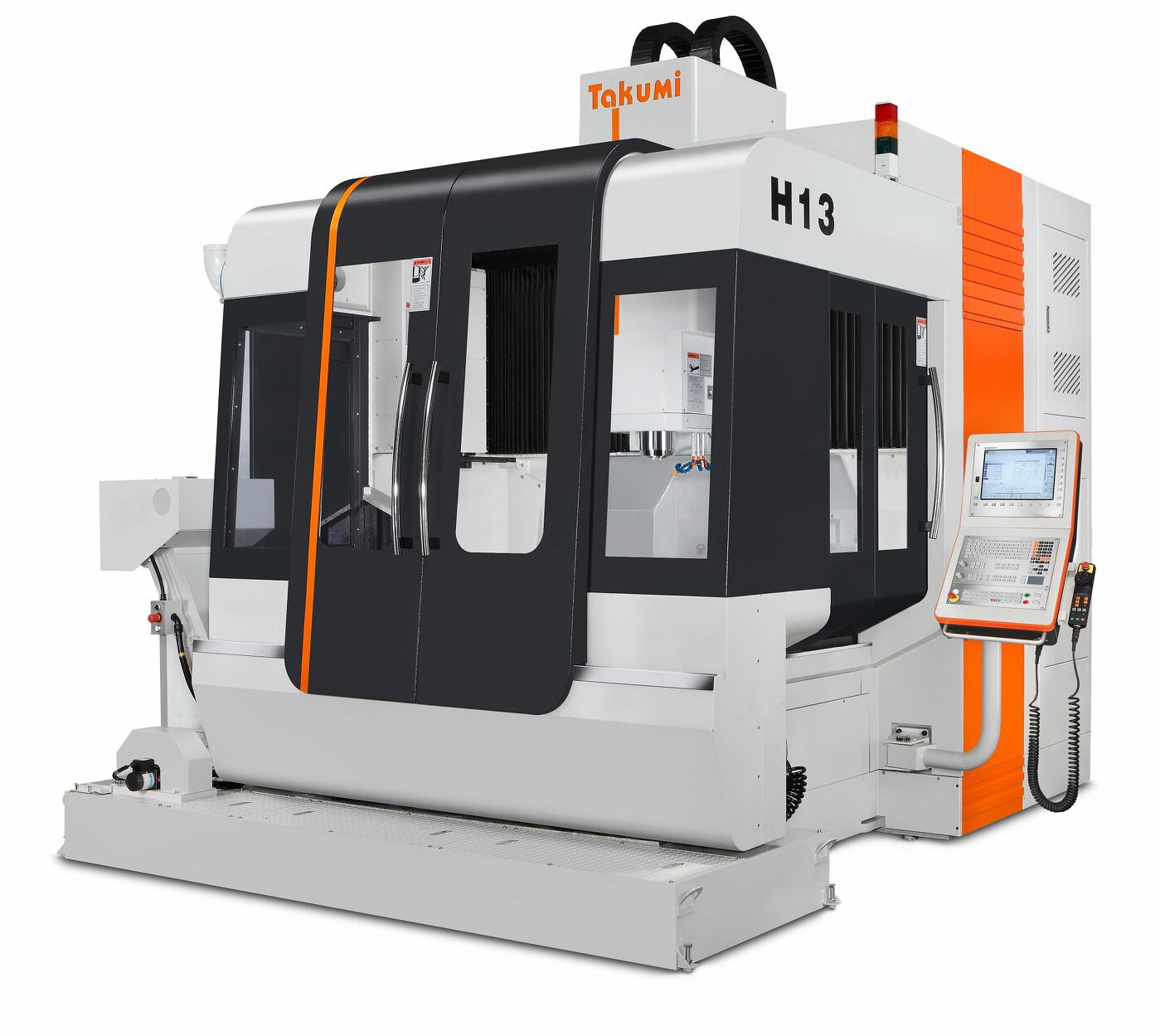

Highly rigid portal machining centers
Technical specifications
| Modell | H6 | H 7 | H10 | H 12 | H 13 | H 16 | H 22S | H 22T | H 32S | H 32T |
| Travels | ||||||||||
| X-Axis (mm) | 550 | 750 | 1.020 | 1.350 | 900 | 1.600 | 2.200 | 3.200 | ||
| Y-Axis (mm) | 600 | 700 | 950 | 1.300 | 1.600 | 2.200 | 1.600 | 2.200 | ||
| Z-Axis (mm) | 350 | 500 | 600 | 700 | 800 | |||||
| Table | ||||||||||
| Table working surface W x D (mm) | 600 x 600 | 810 x 620 | 1.050 x 700 | 1.500 x 960 | 900 x 1.400 | 1.900 x 1.300 | 2.400 x 1.600 | 2.400 x 2.100 | 3.320 x 1.600 | 3.320 x 2.100 |
| Load max. (uniform distribution) (kg) | 500 | 800 | 2.500 | 3.500 | 6.000 | 8.000 | 8.500 | |||
| Distance from spindle nose to table (mm) | 120 - 470 | 150 - 650 | 180 - 680 | 200 - 800 | 160 - 860 | 150 - 950 | ||||
| Distance between columns (mm) | 680 | 850 | 1.080 | 1.060 | 1.500 | 1.750 | 2.350 | 1.750 | 2.350 | |
| T-Slots (DIN 650) | 6 x 14 x 100 | 5 x 18 x 125 | 6 x 18 x 125 | 6 x 22 x 160 | 5 x 22 x 160 | 8 x 22 x 160 | 8 x 22 x 200 | 10 x 22 x 200 | 8 x 22 x 200 | 10 x 22 x 200 |
| Spindle | ||||||||||
| Spindle Taper | HSK40-E | HSK63-A / SK40 - BigPlus / BBT40 | HSK63-A / SK40 - BigPlus / SK50 - BigPlus / BBT40 / BBT50 | |||||||
| Type | Motorspindel | In-Line | ||||||||
| Power S1/S6 (kW) | 12 / 15 | 10 / 14 | ||||||||
| Torque S1/S6 (Nm) | 11 / 13,8 | 63,7 / 89,4 | ||||||||
| Spindle Speed (rpm) | 36.000 | 15.000 | ||||||||
| Feed Rate | ||||||||||
| Rapid Traverse X/Y/Z-Axis (m/min) | 30 / 30 / 30 | 32 / 32 / 32 | 30 / 30 / 30 | 20 / 20 / 20 | 20 / 16 / 20 | 16 / 20 / 20 | 16 / 16 / 20 | |||
| Cutting Feed Rate X/Y/Z-Axis (mm/min) | 12 | 20 | 12 | |||||||
| ATC & Magazine | ||||||||||
| ATC Type | Pick-up | Doppelgreifer | ||||||||
| Magazine Capacity | 20 | 24 | 30 | |||||||
| Maximum Tool Diameter (mm) full / next pocket empty | 75 | |||||||||
| With Empty Pockets (mm) | 100 | 120 | ||||||||
| Maximum Tool Length (mm) | 200 | 300 | ||||||||
| Maximum Tool Weight (kg) | 1,5 | 7 | ||||||||
| Space & System Requirements | ||||||||||
| Maximum Floor Spade (mm) W x L x H | 4.120 x 3.220 x 2.660 | 3.530 x 4.220 x 2.760 | 4.520 x 4.290 x 2.830 | 4.169 x 5.330 x 3.500 | 4.650 x 4.640 x 3.940 | 4.710 x 5.210 x 3.980 | 4.830 x 6.740 x 3.752 | 5.800 x 6.740 x 3.790 | 4.870 x 9.850 x 3.950 | 5.250 x 10.070 x 3.950 |
| Machine Net Weight (kg) | 5.500 | 7.000 | 9.100 | 13.000 | 18.000 | 20.000 | 27.000 | 31.000 | 33.000 | 37.000 |
| Electrical Power Consumption (kVA / A) | 30 / 50 | 50 / 72 | 60 / 87 | 75 / 160 | ||||||
| Air Requirements (bar) | 6 | |||||||||
| Modell | H6 | H 7 | H10 | H 12 | H 13 | H 16 | H 22S | H 22T | H 32S | H 32T |
Accessories
| Standard | Optional | ||
|---|---|---|---|
| H6: Heidenhain Control TNC 620 | Manual pluse generator (MPG) | ||
| H7 / H10: Heidenhain iTNC 640 Control | Rotary table (4th/5th axis) | ||
| Spindle thermal compensation system | Linear Scales | ||
| Chip flushing | Touch probe for tool measurement | ||
| Spindle cooling | Part probe measurement system | ||
| Full enclosure | Oil mist device | ||
| Programmable airblow machining | Oil mist collector | ||
| Oil mist device | Scraper type conveyor | ||
| Wash down gun and air gun | Producation package Knoll | ||
| Chip conveyor and cart | Bypass Filter | ||
| 24T arm type ATC (H7) | Rotoclear | ||
| H7/ H10: Ethernet interface | H6: Built-in spindle HSK40-E2 mit 42.000 rpm | ||
| H7/ H10: 15,000 rpm, CAT/BT40, inline spindle | H7 / H10: Ballscrew cooling system | ||
| H7 / H10: Coolant through spindle (CTS 30bar) | H7 / H10: Ballscrew cooling system |
General Infos
High-rigidity and high-precision mechanical structure
- Main mechanical structures, such as: base, column, saddle, etc., are made of Meehanite casting iron with the process of heat treatment to release the residual stress to ensure every actual miniature movement and to maintain a long-lasting accuracy.
- Box-shaped structural design on beam, together with ladder-like layout of linear guideway makes the combining span of saddle wider and assures a powerful and stable machining capability on the spindle.
- The design with 3-axis roller-type high-precision linear guide-ways acquires a quick response in acceleration and deceleration and gets the rapid traverse up to 32 m/min.
- 3-axis ballscrews, being pre-stretched, can effectively refrain from the thermal deformation and surely guarantee the precise positioning accuracy and repeatability accuracy.
No-counterbalance design on headstock
- The no-counterweight structural design on headstock is without stagnant phenomenon caused by inertia and no vibration resulted from the counterweight, but with the agile, quick and stable response in feed.
- Z-axis linear guideway with 6 blocks ensures good accuracy in long-term operation and long service hours.
High-precision and high-performance spindle
- Embedded automatic thermal compensation appliance can effectively refrain from the thermal deformation and surely guarantee the accuracy.
- The cooling system on the spindle makes sure the temperature stability in spindle operation and restrains from the thermal deformation on the spindle to optimize the machining accuracy.
Chip flushing function and oil-skimmed design
- The inclined-plane design on the chassis, together with the flushing coolant system on both rear sides, makes chip removed effective.
- Oil-skimmed design – the water tank with oil skimmer makes the service life of coolant longer.
Automatic Tool change
- Tool magazine with tool change arm 20 seats, 50 seats optional
Heidenhain Control TNC 640
- Our Takumi Machining Centers are equipped with the latest Heidenhein TNC control.
